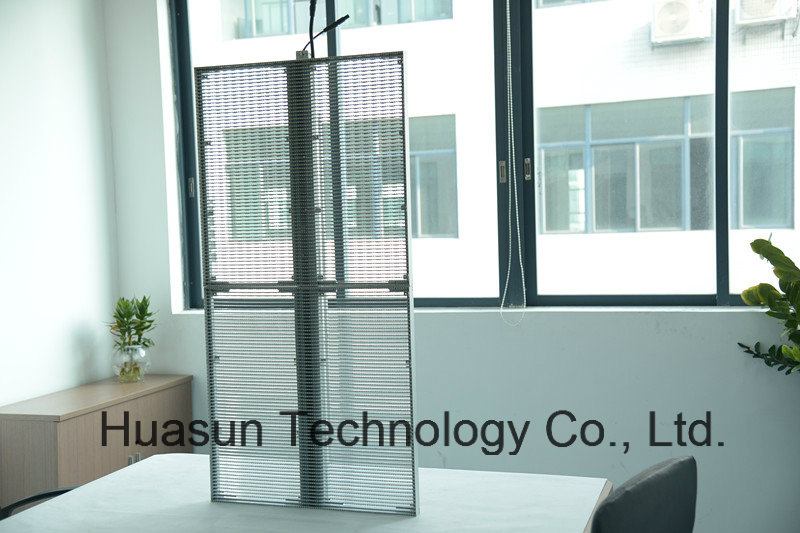

Huasun Transparent Glass LED Display P6
1.Standard Module Size600x600mm
Standard size can be used to assemble larger
DispLays, using The right resolution for The job.
2.Quick & Easy installation
Only hand assembly required. Modules easily
snap together with support frames.
3.best selling product model with high brightness
and resolution.
4. Perfect design for showroom, shopping mall,
windows display facade etc.
5. Light weight and easy for transport.7kg/module
includes power supply and controller.
Model No |
T-6 |
Pixel Pitch |
X:6.25mm / Y:9.375mm |
Density |
20000 pixels/ m² |
Pixel Configuration |
RGB 3-IN-1 SMD LED |
IC |
MBI 6023 |
Brightness |
5000nit (High Brightness) |
View distance | 6.25m |
Max.Power Consumption |
300 W/Module |
Average.Power Consumption |
110 W/Module |
Module size
W=width
H=height
T=thickness |
W: 600mm |
H: 600mm |
T: 22mm |
Weight |
5Kg/Module |
Work voltage |
DC 5V |
Brightness level |
16 levels |
Bit depth per color |
16 bit |
Bit depth per pixel |
48 bit |
Visual Angle |
Horizontal: 120°; Vertical: 150° |
Drive mode |
Constant current |
Signal type |
AV,S-Video,VGA,CVBS,HDMI,DVI |
Control Distance |
HSYV; <100m |
Body structure |
Plastic , Metal |
IP |
IP20 |
Ambient Temperature |
-20 ~ +50 °C |
Relative Humidity |
10% ~ 90% |
Power system |
Power-400 |
Installation |
Hang |
